易装易拆、维修方便：将龙骨按水平线吊装好，把板扣上去即可，每块板都是独立的，可把每块板单独拆卸下来，保养起来更简单。

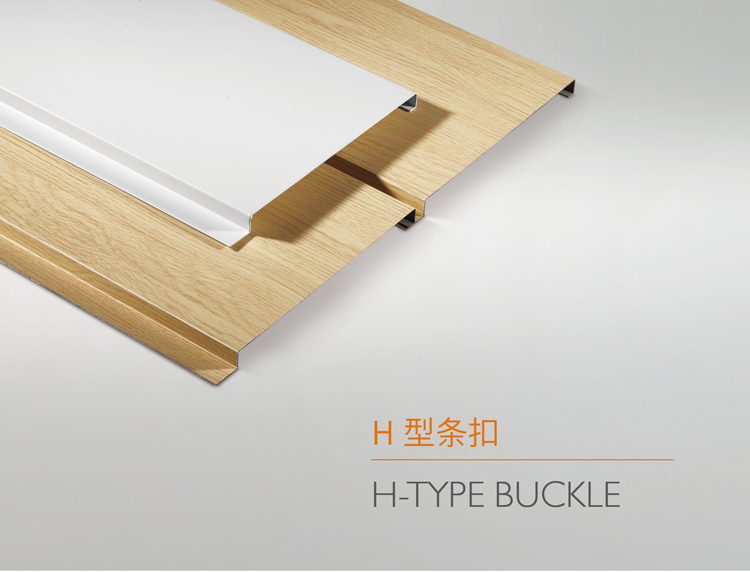

H型条板为纵向缝，细密且板面平直，线条简洁明快，富有变化，可进行各种覆膜和粉末喷涂等表面处理。
搭配灵活：

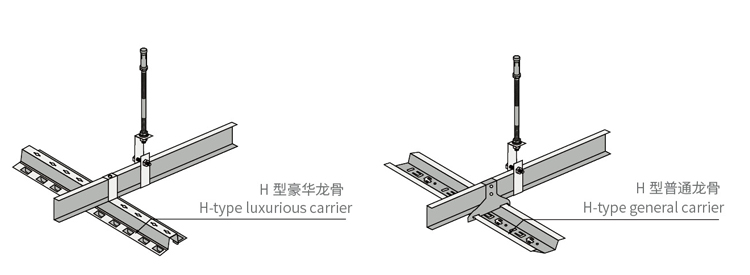

专用龙骨上有固定模数的卡齿，可为消费者提供更多的设计构思和装饰效果。
适用范围：

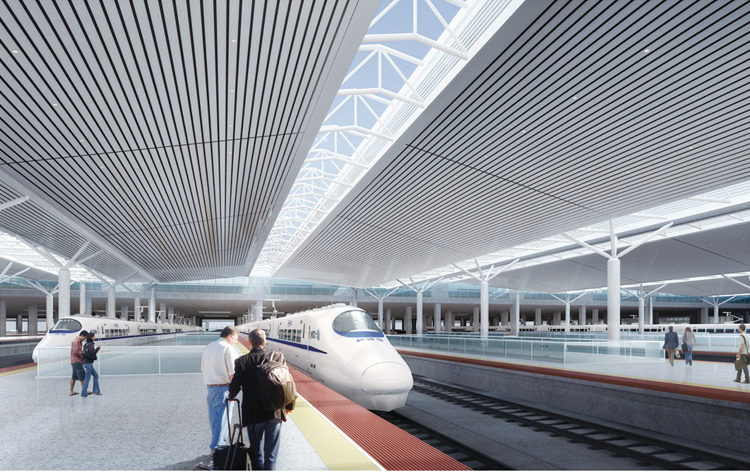

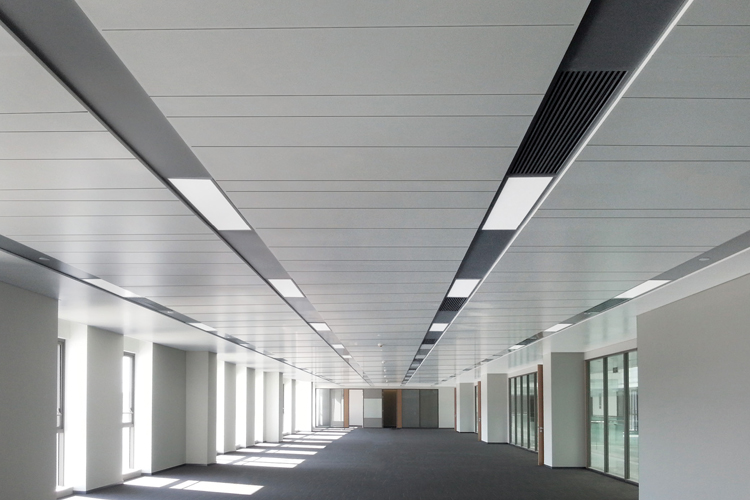

H型条板适用于写字楼、酒店、停车场、商贸娱乐场所、高级住宅大中小型建筑的装饰。
Easy to install, easy to remove and easy to maintain: the keel is hoisted according to the horizontal line, and the plate can be buckled up. Each plate is independent, and each plate can be disassembled separately, which makes the maintenance easier.
H-type strip is longitudinal seam, fine and straight, simple and bright lines, full of changes, can carry out a variety of coating and powder spraying and other surface treatment.
Flexible collocation:
There are fixed module teeth on the special keel, which can provide more design ideas and decorative effects for consumers.
Scope of application:
H-type slat is suitable for decoration of office buildings, hotels, parking lots, business and entertainment places, high-grade residential buildings.

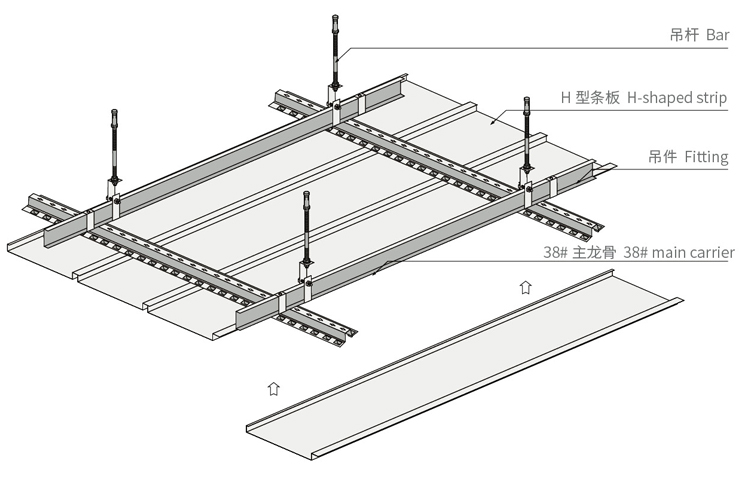

H扣安装结构图
STRUCTURE DIAGRAM OF H-SHAPED STRIP CEILING

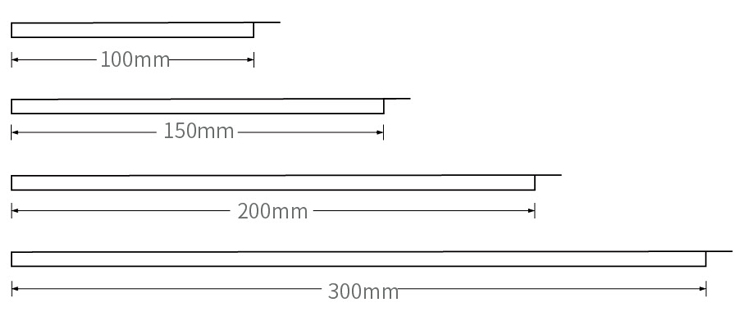

| 宽度(W) | 100mm 150mm 200mm 300mm |
| 厚度(D) | 0.5-1.0mm |
| 高度(H) | 11.5mm 15mm |
| 长度(L) | 订尺 |

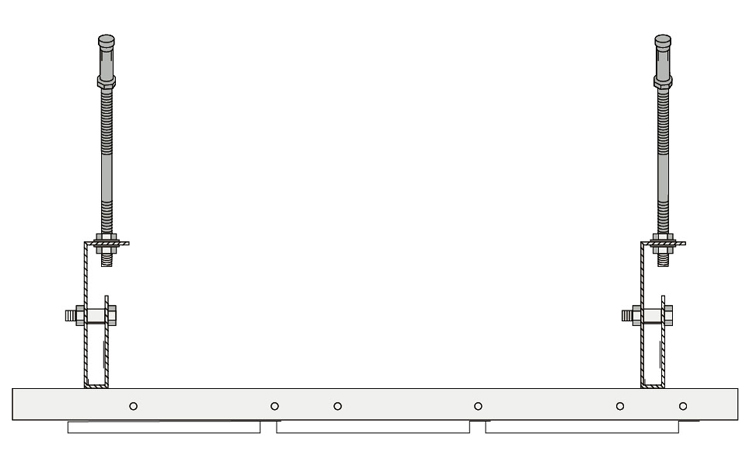

H扣拼装示意图
THE DRAWING OF INSTALLATIOM OF H-SHAPED STRIP CEILING
